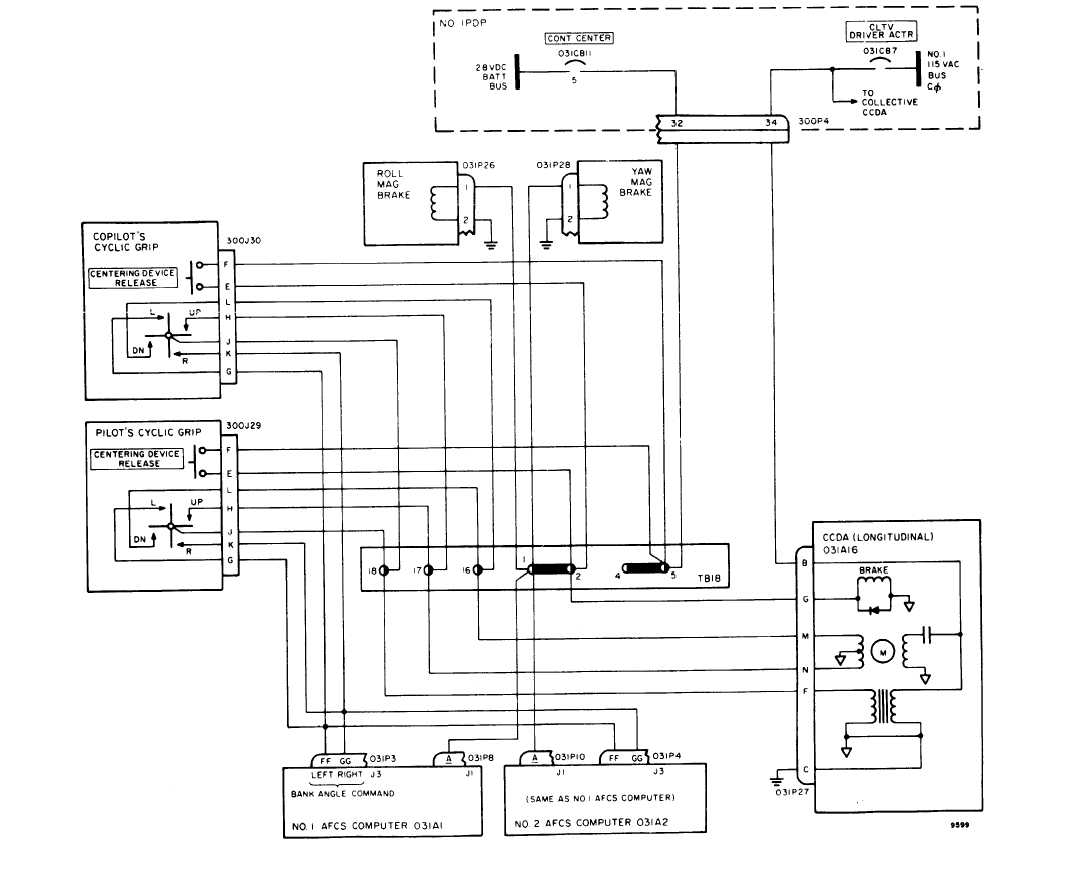

Quantcast AFCS SCHEMATIC (LONGITUDINAL CCDA AND MAGNETIC BRAKES POWER AND CONTROL)
AFCS SCHEMATIC (COLLECTIVE AXIS LOGIC)
AFCS  SCHEMATIC  (LCT  ACTUATORS  POWER  AND  CONTROL)

TM-55-1520-240-T-3 CH-47D Heilcopter Manual
